XPR-10S (5175395) 10,000‐lb. Capacity / Symmetric Clearfloor / Adjustable Width / Screw Pads
$ 2,717.84
$ 5,329.10
The XPR-10S is a two-post lift with a capacity of 10,000 lbs. It has a symmetric clearfloor design, which allows for easy access to the vehicle and improves visibility in the garage. The lift has adjustable width and screw pads, making it compatible with a range of vehicles.
Features & Specs
- 10,000‐lb. lifting capacity
- Expandable top beam accommodates wide or narrow drive‐thru configuration

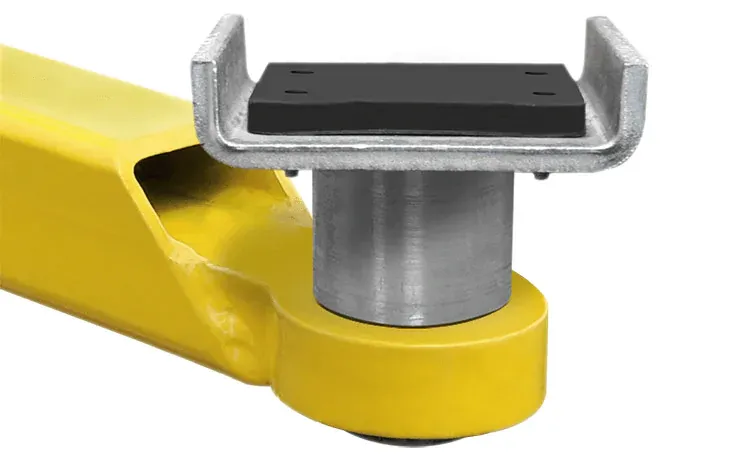

- Double‐telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Telescoping arm design for more versatile arm positioning
- Single‐piece columns
- Single‐point safety release
- Drop‐end arms provide a lower pad height
- Dual hydraulic direct‐drive cylinders
- Oversized 53″ tall carriage for superior strength and durability
- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self‐lubricating dura‐glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3″

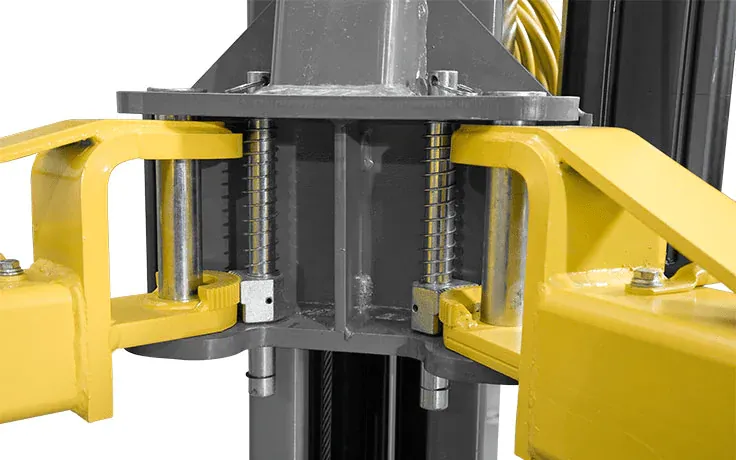

- Plated arm restraints and arm pins for rust prevention
- Heavy‐duty 1/2″ aircraft‐quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4‐piece 63 mm stackable adapter set comes standard
- Triple‐telescoping front arms
- ETL Approved
Capacity
Lifting Capacity*
10 000 lbs. (4 536 kg)
*Max Capacity / Front Axle
5 000 lbs. (2 268 kg)
*Max Capacity / Rear Axle
5 000 lbs. (2 268 kg)
Rise
A – Rise:
69″ (1 753 mm)
B – Rise + Pad Only:
75″ (1 905 mm)
C – Rise + Pad + 63 mm Adapter:
77,5″ (1 969 mm)
D – Min. Height + Pad:
4″ (102 mm)
Time to Full Rise:
45
Outside Dimensions
E – Height Overall: 145″ (3 683 mm)
F – Width Overall: 132″ (3 353 mm) or 145″ (3 683 mm)
G – Outside Columns: 126,75″ (3 219 mm) or 139,75″ (3 550 mm)
Inside Dimensions
H – Inside Columns: 105,5″ (2 680 mm) or 118,5″ (3 010 mm)
I – Drive-Thru Clearance: 93″ (2 362 mm) or 106″ (2 692 mm)
J – Floor To Overhead Switch: 141″ (3 581 mm)
Arms & Pads
K – Front Arm Reach: (MIN)
27,5″ (699 mm)
K – Front Arm Reach: (MAX)
51,5″ (1 308 mm)
L – Rear Arm Reach: (MIN)
34″ (864 mm)
L – Rear Arm Reach: (MAX)
54,5″ (1 384 mm)
Screw Pad Adjustment:
2″ (51 mm)
Max Load Per Arm
2 500 lbs. (1 134 kg)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 db
Shipping
Weight:
1,744-lbs. (791 kg)
Dimensions:
150” x 24” x 39” (3810 mm x 609 mm x 990 mm)
