Xinkong 10,000 LBS L1000 2 Post Lift Car Lift Auto Truck Hoist Free Shipping 220V or 110V
$ 1,529.49
$ 2,999
Welcome to Our Store!
Welcome to check our store for more items! You can also visit our warehouse in CA to pick up the product yourself and save money.
Warranty:
We offer a 12-month warranty on all metal, pneumatic, electrical parts, and motors. Choose us for the BEST warranty!
Most sellers provide only 3-6 months warranty (1 year at most). Compare before making your decision. Visit our shop for full warranty terms and conditions.
Factory Defective Items:
Refunds for defective items will cover the full purchase price.
If a replacement is needed, there will be no additional shipping cost if the item is confirmed defective.
Product Details: Auto Car Lift L1000 Two Post Base Plate
Available in 220V or 110V options, 60Hz, 1 phase, 3HP motor.
Includes free adjustable truck pads and truck adapters.
Safety Mechanism:
- Double Point Safety Lock Release

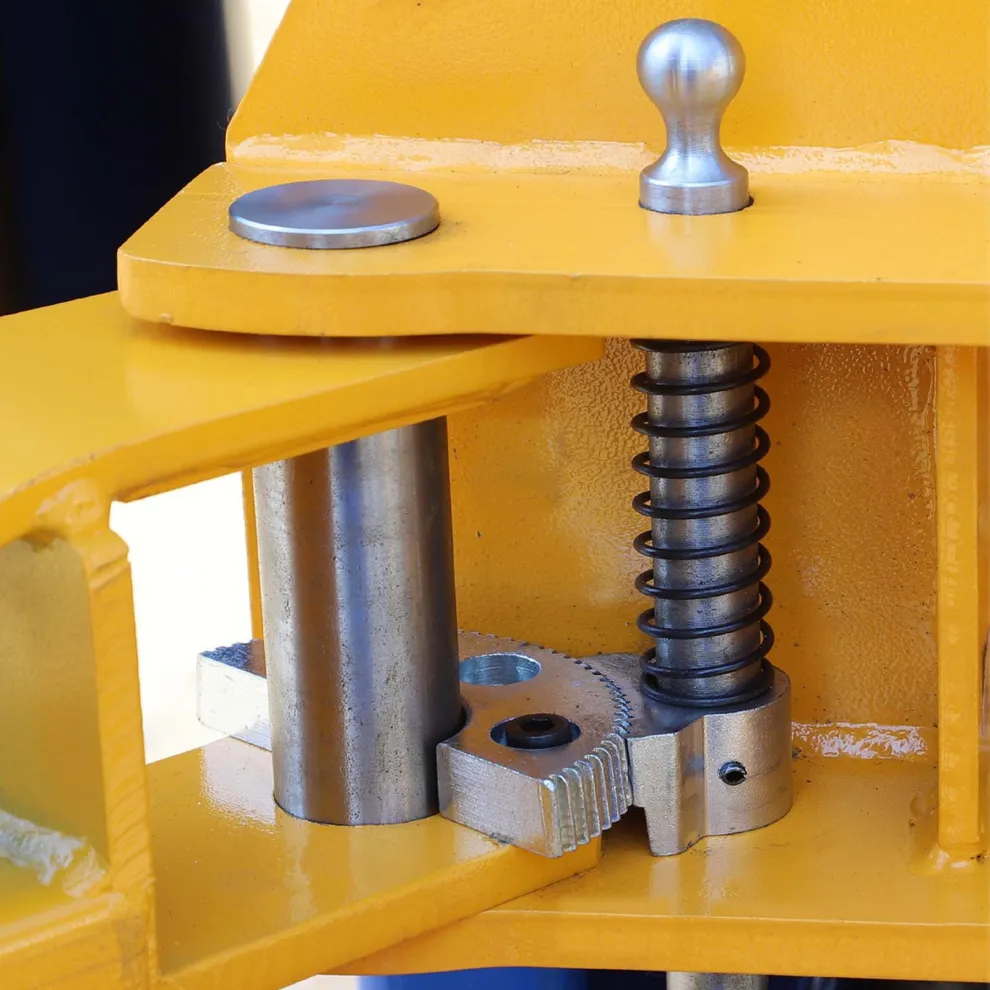

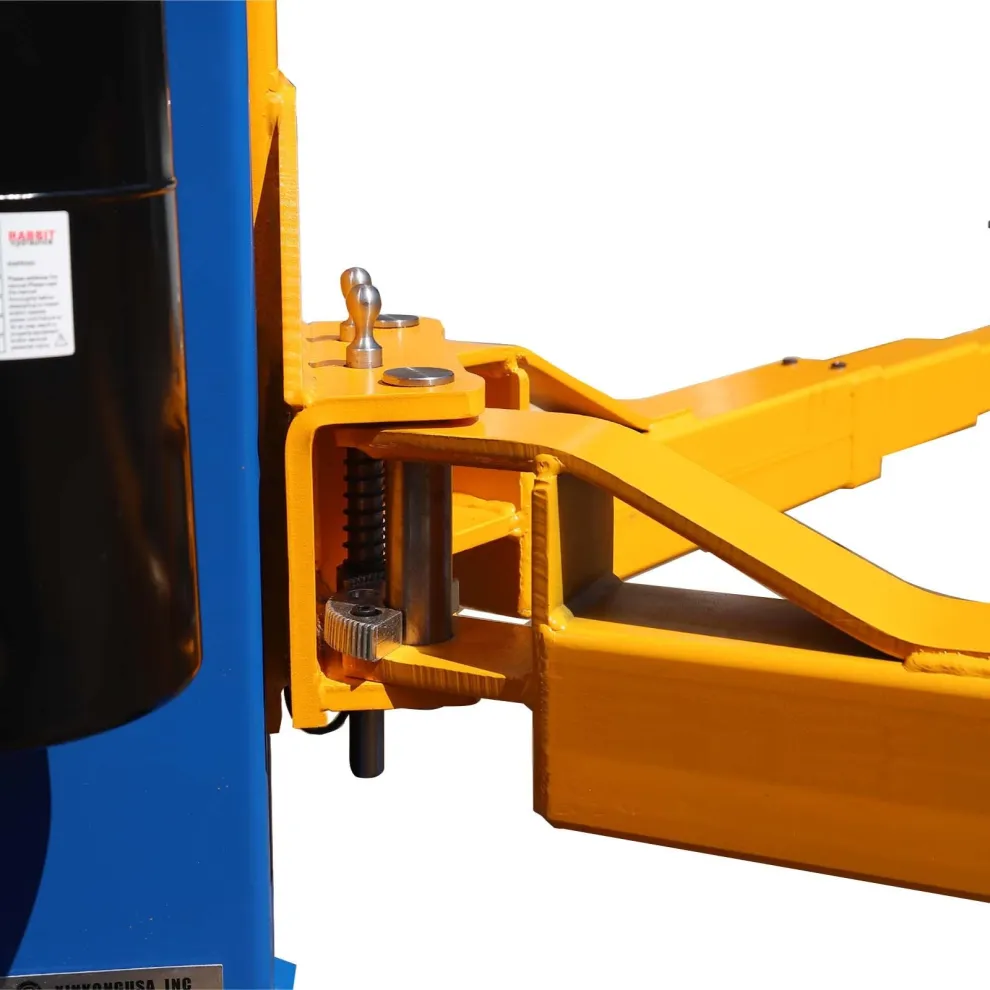

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading

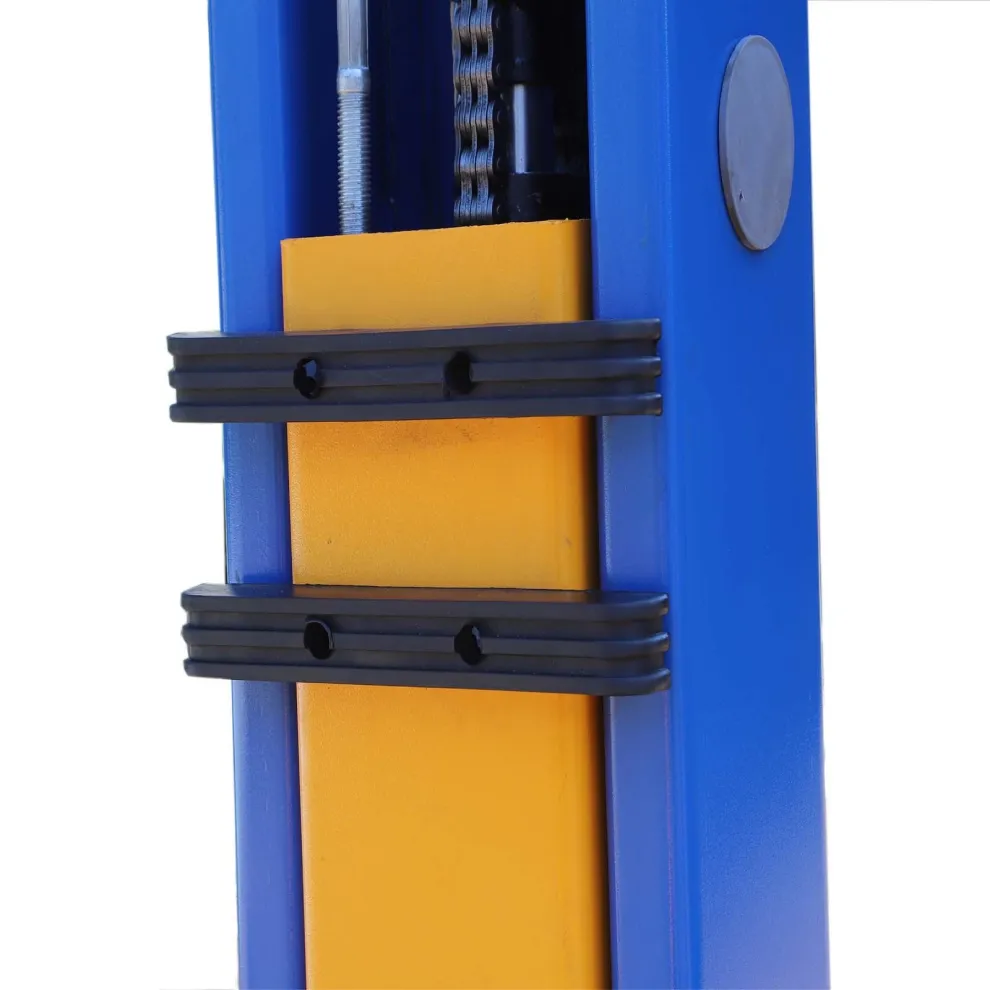

- Door guards with protective rubber
- Heavy-duty 5/16" diameter cable and 4.56" pulley to reduce high stress and increase cable life
- Stiffened base plate (5/8" thickness)
- Ultra-high molecular self-lubricating nylon slider for smooth carriage movement
- Anchor bolts and mounting hardware included
- Control System:
- Lifting operation with "UP" button on motor
- Manual lowering by pressing lever
- Relief valve built in power pump to prevent overloading
- 1 set of truck adapters included

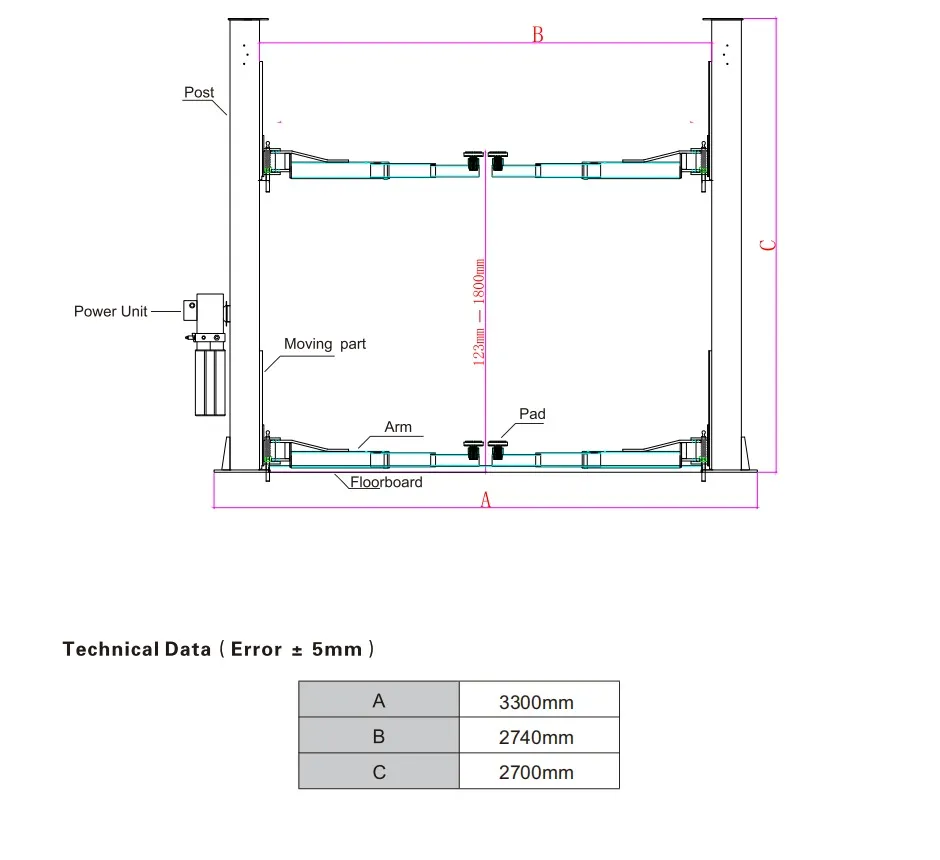

- Lifting Capacity: 10,000 lbs
- Overall Height: 110-1/4"
- Overall Width: 130"
- Column Width: 10.62"
- Base Width: 18.89"
- Steel Thickness:
- Column: 3/16"
- Carriage: 15/64"
- Arms: 15/64"
- Arm Length: Front: 30.7" to 48", Rear: 30.7" to 48"
- Min Pad Height: 3-7/8"
- Max Lift Height: 78-7/8"
- Drive-thru Width Clearance: 99 19/32"
- Time to Full Rise: 20-60 sec
- Shipping Weight: 1350 lbs
- Site Selection:
Before installing your auto lift, check the following:
- Lift Location: Ensure adequate space is available. The lift requires a 220V or 110V, 30amp, single phase, grounded electrical source.
- Overhead Area: Ensure there are no obstructions such as heaters, supports, electrical lines, etc.
- Floor Area: Inspect the site for cracked or defective concrete.
Floor Requirements:
- A level floor is recommended. Small differences can be compensated with shimming.
- If the floor slope is questionable, consider a site survey or a new concrete slab.
- New concrete must cure for at least 30 days.
Concrete Specifications:
- Must be installed on 3,000 PSI reinforced concrete.
- 8,500 lbs – 10,000 lbs lifts: 4" Minimum Thickness
- 11,000 lbs – 15,000 lbs lifts: 6" Minimum Thickness
