APluslift Falcon 18000LB and 22000LB Mobile Column Lifting System
$ 2,600.74
$ 7,995
3 Year (36 Months) Warranty!
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
Each column has a maximum lifting capacity of 18,000LB or 22,000LB.

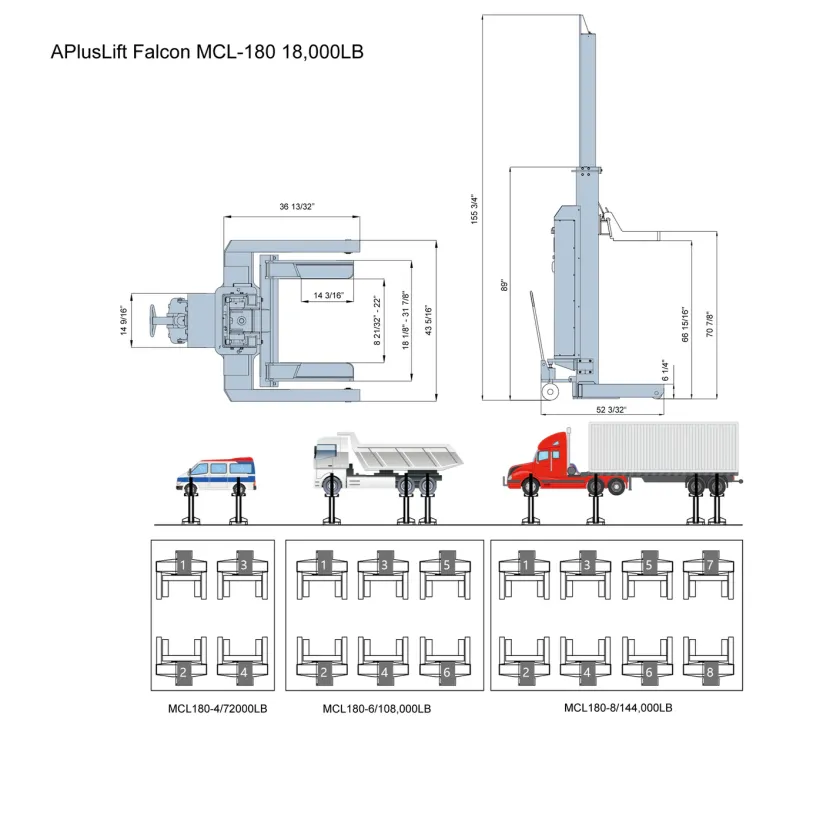

Multiple group combinations (up to 48 columns).
Wired data communication.
Double safety guaranteed by mechanical and hydraulic locking systems.
Move Kit, Moving wheel, Rubber pad Included to Easy Movement
APlusLift Falcon MCL-180 Mobile Columns Lifting. It is built with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. Suggestions to improve our products and service are always welcome!
Frequently Asked Product, Order, and Shipping Questions and Technical Questions

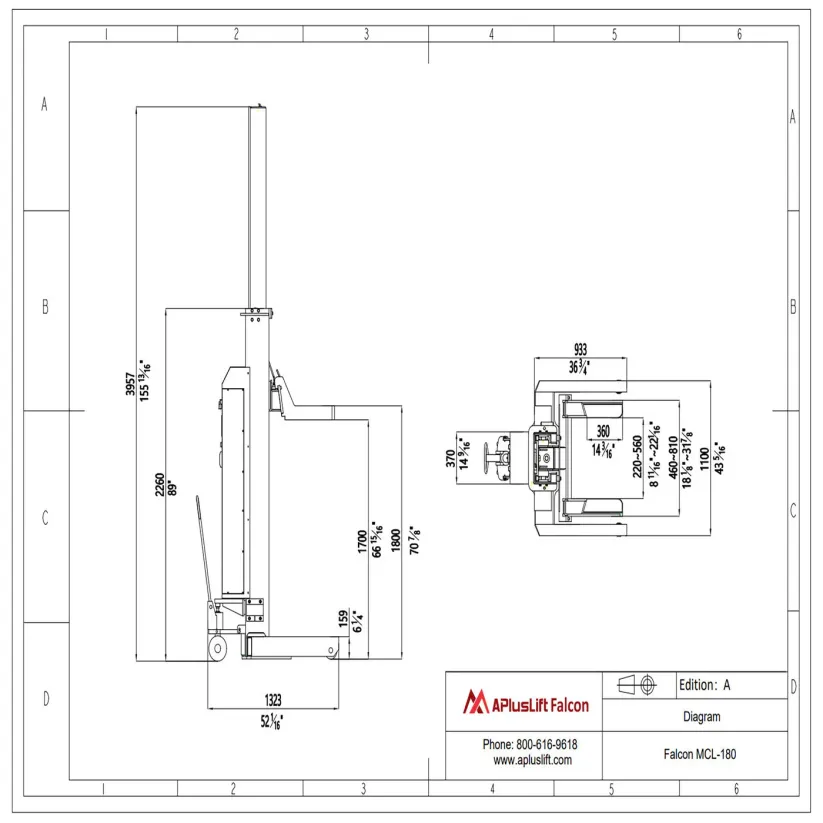

Specifications and Features | ||
| Model | MCL-180 | MCL-220 |
| Manual | MCL-180 Manual | MCL-220 Manual |
| Lifting capacity | 18,000lbs per column | 22,000lbs per column |
| Column steel thickness | 1/4" | 5/16" |
| Carriage steel thickness | 5/16" | 5/16" |
| Overall Height | 155 3/4" | 163 1/32" |
| Maximum Lift Height | 70 7/8" | 70 7/8" |
| Minimum Height of Adjustable Pads from Ground | 6 1/4" | 6 1/4" |
| Effective wireless communication distance | 39 3/8" | 39 3/8" |
| Maximum pressure at rated load | 14.5MPa | 17MPa |
| Unlocking system | Electrical release | |
| Hydraulic fluid specifications and usage | 3-5 gallons AW32/AW46 (Not Included) | |
| Motor voltage and power unit | DC24V 3HP per column | |
| Battery | 2x12V 100Ah | |
| Charger | AC100-120V /200-240V | |
| Operating voltage | DC24V | |
| Lifting time | 85 seconds | |
| Descent time | 75 seconds | |
| Operating temperature | 0-60℃ | |
| Concrete Requirement | 8" thick at 4000 psi reinforced with fiberglass or steel | |
| Shipping Weight | 1,870lbs per column | 2,035lbs per column |
| Shipping package size | 89"L x 46"W x 54"H per column | 99"L x 46"W x 59"H per column |
Features
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Each column has a maximum lifting capacity of 18,000LB or 22,000LB.
- Multiple group combinations (up to 48 columns).
- Wired data communication.
- Double safety guaranteed by mechanical and hydraulic locking systems.
- Synchronization achieved using microchip technology in the control system.
- Touchscreen control, Real-time lifting height.
- Emergency stop button on each column.
- Any column in the group can become the control column using the access ID card
- Audible warning for the final travel distance of the lowering movement
- The lifting system is battery-powered. Each column has a charger rated AC110-240V-1Ph
- DC24V safe control voltage

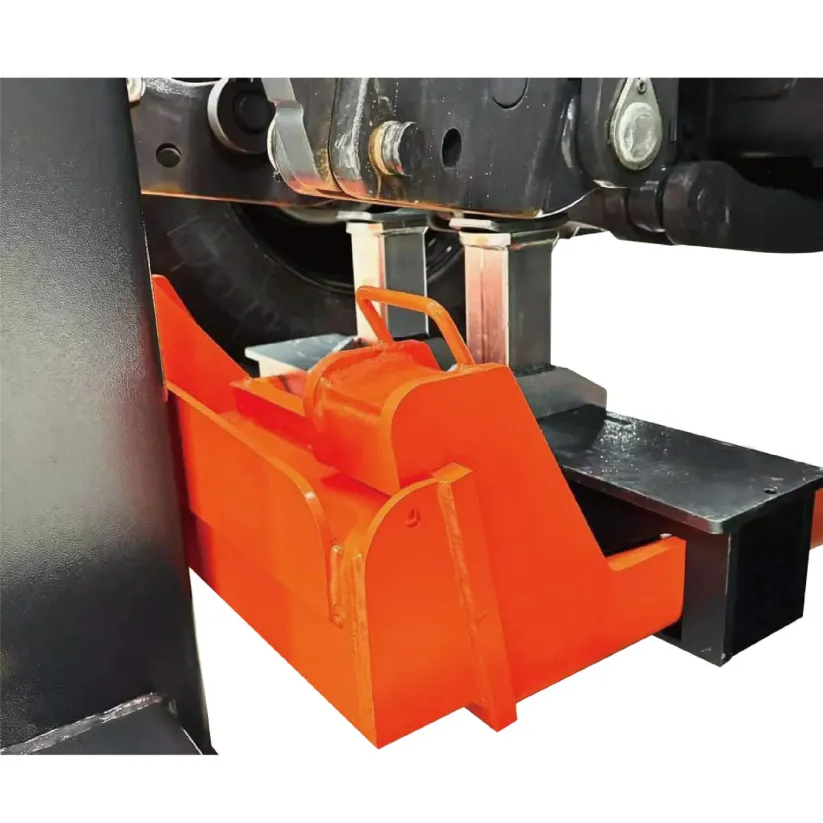

- Adjustable wheel pick-up fork accommodates tire diameters from 23 5/8" to 49 7/32"
