APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-14SR
$ 2,192.49
$ 4,995
Industry leading 3 YEAR WARRANTY (a $499 value!)
Single Point Safety Lock Release System
Two Set of 2 3/4" Tall and 5 1/2" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
All Robot Welded Structure with Durable Powder Coated Finish

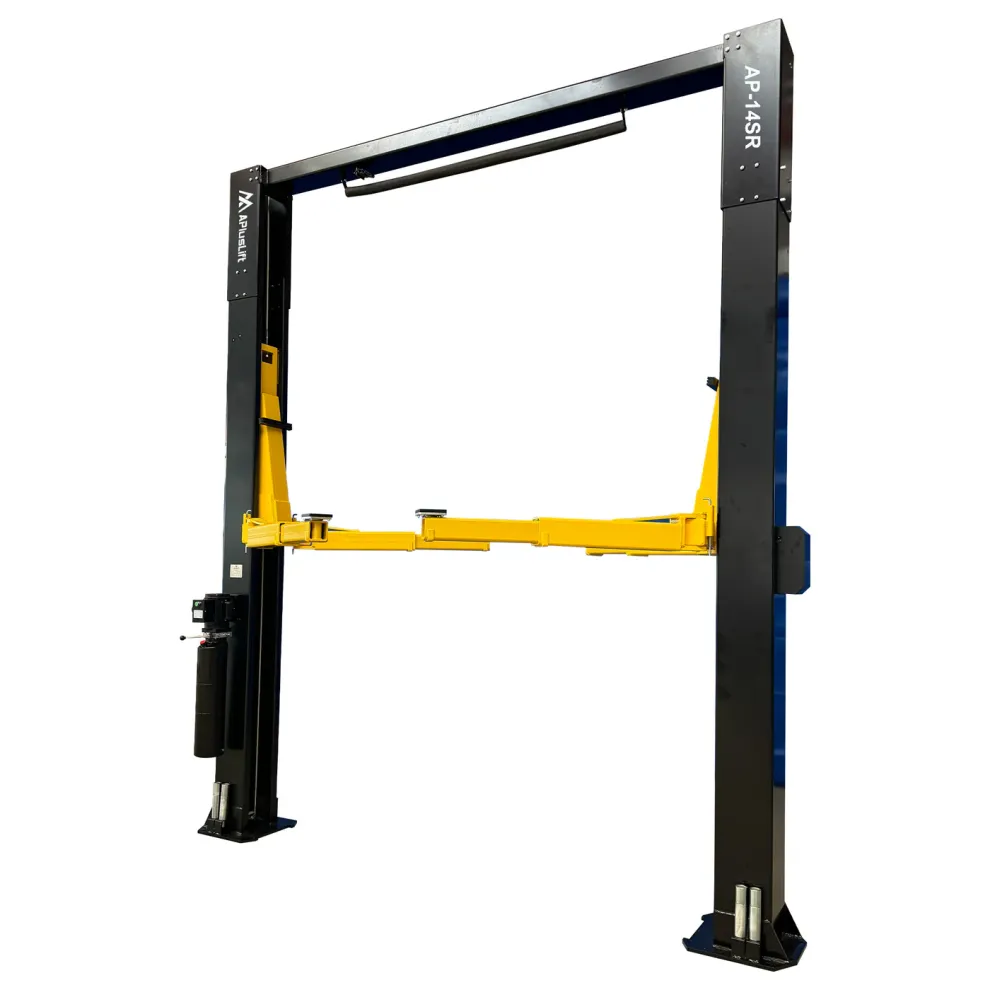

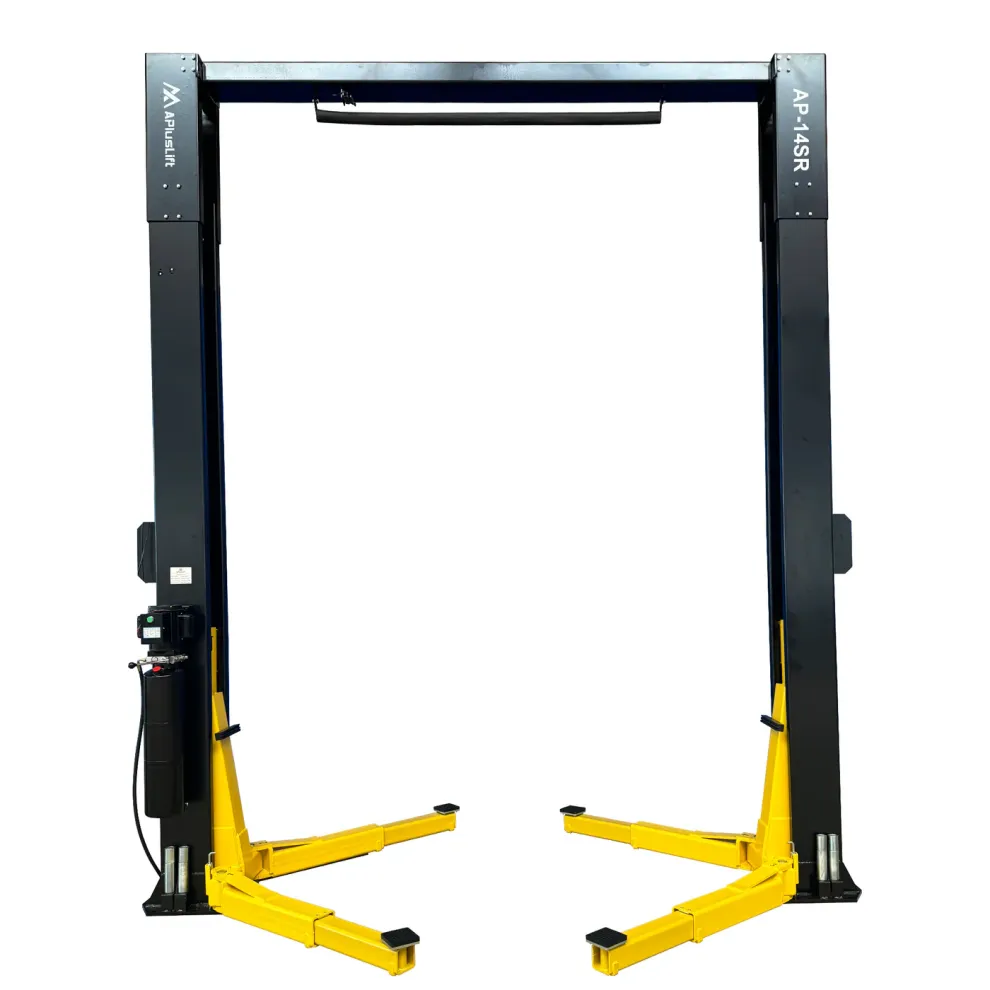

APlusLift AP-14SR is a 14000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications | |||||||||
| Model | AP-14SR (This Model) | HW-12HD (for Comparison) | |||||||
| Manual | AP-14SR Manual | HW-12HD Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 14,000 LB | 12,000 LB | |||||||
| Overall Height | 165 11/32" | 160" | |||||||
| Overall Width | 142 1/8" | 137 13/32" | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32" | 77 15/16" | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32" | 72 7/16" | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 11/16" | 5 1/8" | |||||||
| Drive Through Width (Carriage to Carriage) | 104 1/8" | 99 23/32" | |||||||
| Column to Column Width | 114 11/16" | 110 1/32" | |||||||
| Column Cross Section | 12 7/32"L x 9 27/32"W | 12 7/32"L x 9 27/32"W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, direct drive | |||||||
| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 3.2-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 75 seconds | |||||||
| Shipping Weight | 2300 LB | 2100LB | |||||||
| Shipping package size | 150"L x 33"W x 21"H | 146"L x 33"W x 21"H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | Symmetrical Arm Assembly | |||||||
| Front Arms | Straight Front 2 stages reach from 32 5/32" to 49 7/32" | 2 stages reach from 32 5/32" to 49 7/32" | |||||||
| Back Arms | Straight Rear 2 stages reach from 32 5/32" to 49 7/32" | 2 stages reach from 32 5/32" to 49 7/32" | |||||||
| Column Steel Thickness | 1/4" | 1/4" | |||||||
| Carriage Steel Thickness | 1/4" | 1/4" | |||||||
| Carriage Yoke Thickness | 13/32" | 13/32" | |||||||
| Arm Steel Thickness | 5/16" | 5/16" | |||||||
| Base Plate Steel Thickness | 5/8" | 5/8" | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" Tall | Two Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" Tall | |||||||
| Other Parts Included |
| ||||||||
| Optional Parts | 2 3/4" and 6" Tall Truck Adapters | ||||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Coloumn Material Q235B Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
