APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - HW-12HD
$ 2,139.45
$ 4,195
Industry leading 3 YEAR WARRANTY (a $499 value!)
Single Point Safety Lock Release System
Two Set of 2 3/4" and 5 1/2" Tall Truck Adapters Included; 77 15/16" Lift Height Maximum with Truck Adapters
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
All Robot Welded Structure with Durable Powder Coated Finish

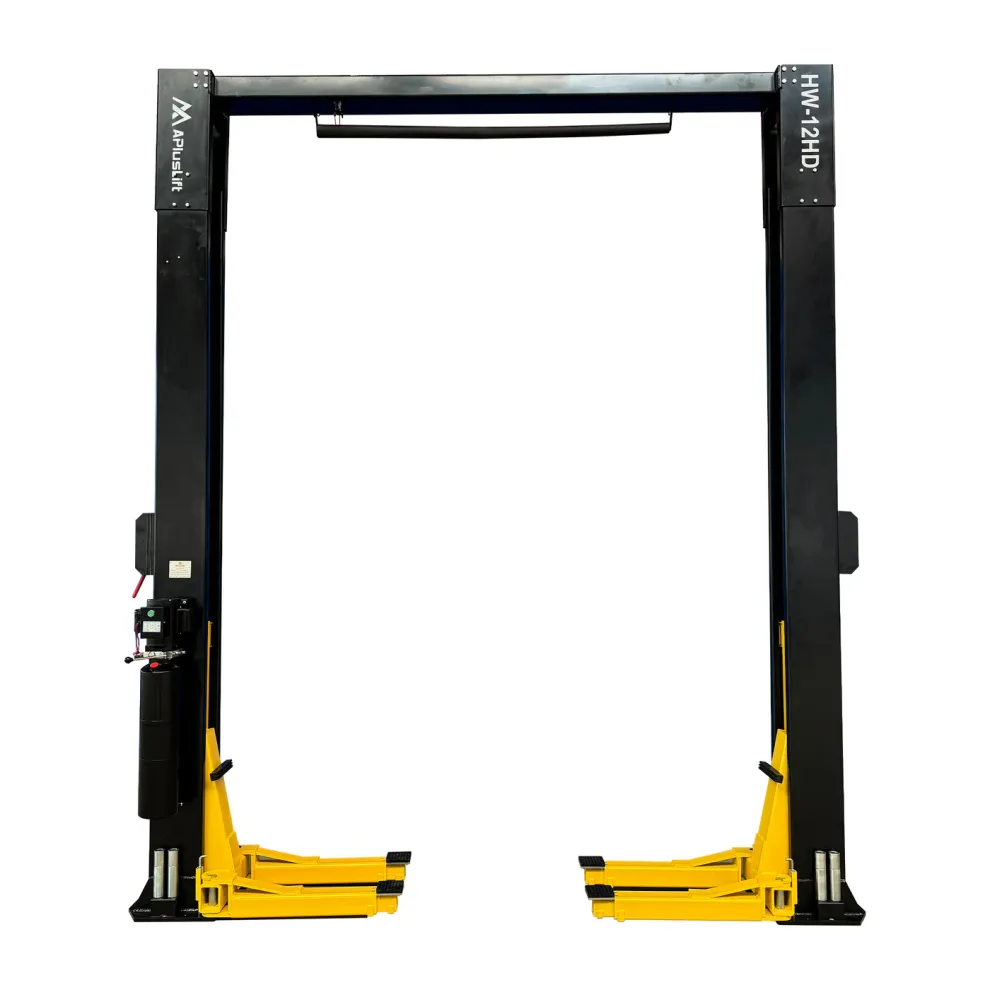

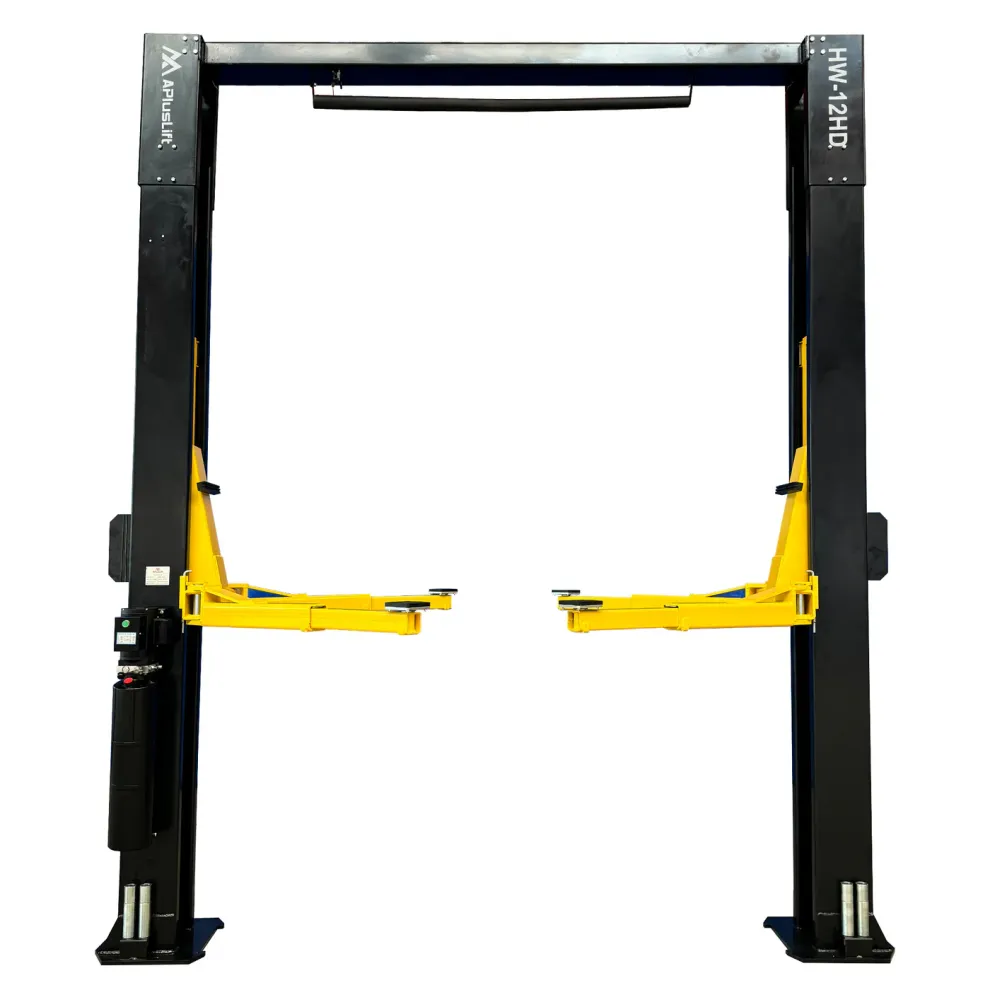

APlusLift HW-12HD is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications | |||||||||
| Model | HW-12HD (This Model) | AP-12SR (for Comparison) | |||||||
| Manual | HW-12HD Manual | AP-12SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 12,000 LB | 12,000 LB | |||||||

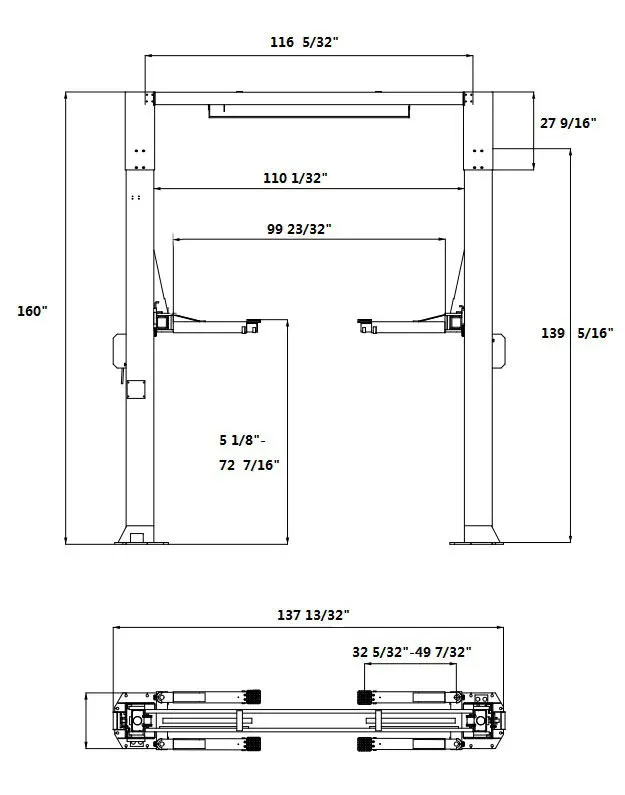

| Overall Height | 160" | 165" | |||||||
| Overall Width | 137 13/32" | 149" | |||||||
| Maximum Lift height with Truck Adapters | 77 15/16" | 79" | |||||||
| Maximum Lift height without Truck Adapters | 72 7/16" | 70" | |||||||
| Minimum Height of Adjustable Pads from Ground | 5 1/8" | 4" | |||||||
| Drive Through Width (Carriage to Carriage) | 99 23/32" | 109" | |||||||
| Column to Column Width | 110 1/32" | 123" | |||||||
| Column Cross Section | 12 7/32"L x 9 27/32"W | 14 3/8"L x 7 13/16"W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, direct drive | |||||||
| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP with Inverter Motor (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 75 seconds | |||||||
| Shipping Weight | 2100 LB | 2500LB | |||||||
| Shipping package size | 146"L x 33"W x21"H | 117"L x 22"W x 50"H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | Symmetrical Arm Assembly | |||||||
| Front Arms | 2 stages reach from 32 5/32" to 49 7/32" | Straight Front 3 Stage reach from 37 1/2" to 72 3/16" | |||||||
| Back Arms | 2 stages reach from 32 5/32" to 49 7/32" | Straight Rear 3 Stage reach from 37 1/2" to 72 3/16" | |||||||
| Column Steel Thickness | 1/4" | 1/4" | |||||||
| Carriage Steel Thickness | 1/4" | 1/4" | |||||||
| Carriage Yoke Thickness | 13/32" | 3/4" | |||||||
| Arm Steel Thickness | 5/16" | 5/16" | |||||||
| Base Plate Steel Thickness | 5/8" | 13/16" | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 2 3/4" Tall and 5 1/2" Tall | Two Sets: 3" Tall and 6" Tall | |||||||
| Other Parts Included |
| ||||||||
| Optional Parts | 2 3/4" and 6" Tall Truck Adapters | ||||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Coloumn Material Q235B Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading

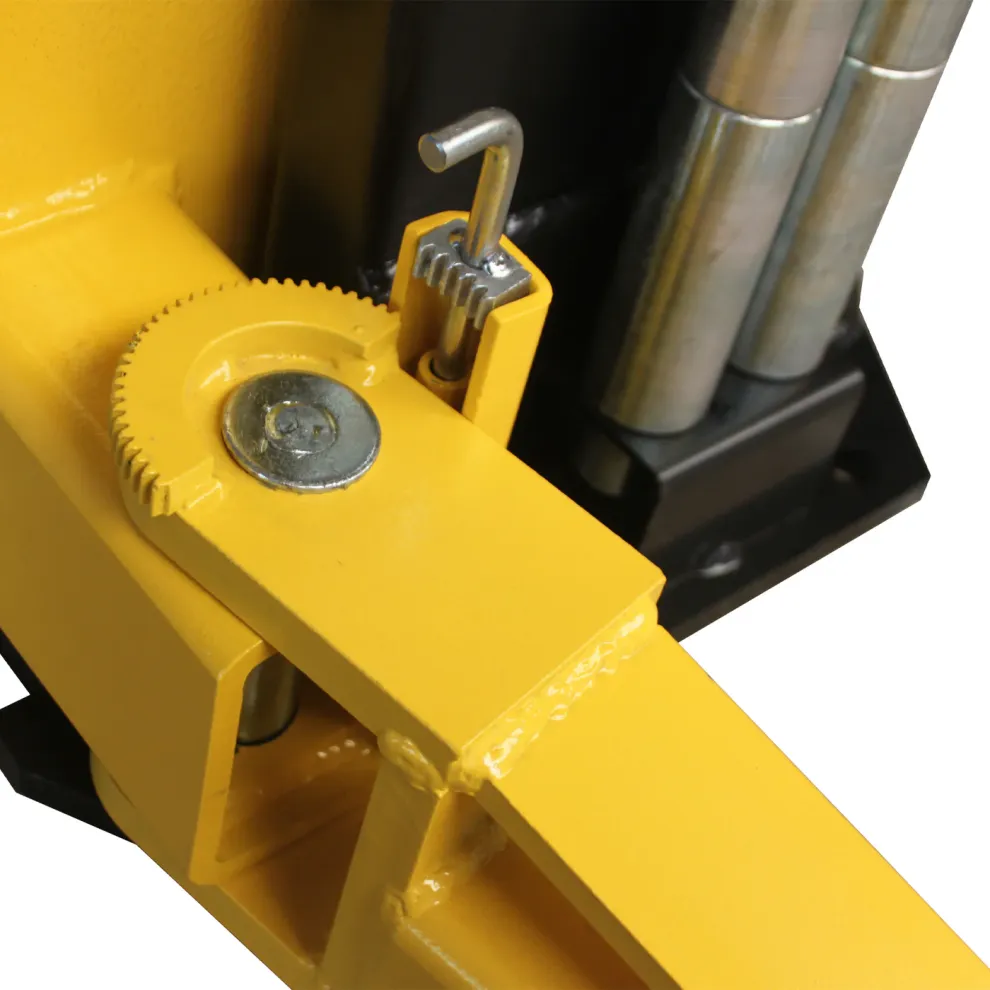

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
